| 원래 장소: | 중국 |
| 브랜드 이름: | VEOLIA |
| 인증: | CE |
| 모델 번호: | Veolia EDI 모듈 E- 세포 MK-3 |
| 문서: | Veolia EDI catalog.pdf |
| 최소 주문 수량: | 1 PC |
|---|---|
| 가격: | 협상 가능 |
| 포장 세부 사항: | 표준 수출 포장 |
| 배달 시간: | 5-8 일 |
| 지불 조건: | T/T, Western Union |
| 공급 능력: | 한 달에 60000 단위 |
| 표준 최대 수자원 생산 (M3 /HR): | 4.5 | 표준 최소 수자원 생산 (M3 /HR): | 1.6 |
|---|---|---|---|
| 표준 회복: | 최대 96% | 이 스택의 표준 운송 중량: | 100kg (220 파운드) |
| 표준 경도 (CACO3로서 PPM): | <1.0 | 이 스택의 나트륨: | ≤ 3 ppb |
| 이 스택의 붕소: | 0.08 ppb로 낮습니다 | pH 범위: | 4 ~ 11 |
| 색상: | ≤ 5 APHA | 저항: | ≥ 16 MOHM-CM |
| 모듈 응용 프로그램: | 산업 고 순결한 물 준비 |

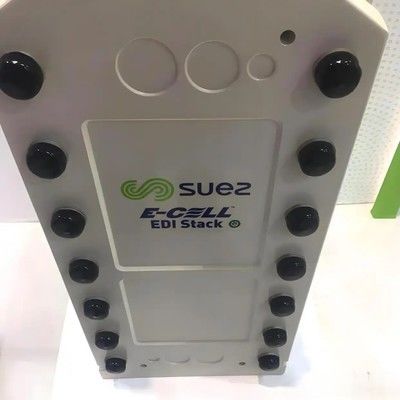

The Veolia E-Cell MK-3 Electrodeionization (EDI) Stack is designed for the continuous production of high-purity water, effectively removing ionized and weakly ionized substances from reverse osmosis (RO) permeate. It delivers ultra-pure water with resistivity up to 18 MΩ·cm without the need for chemical regeneration, reducing operational costs and environmental impact. Ideal for industries such as power generation, pharmaceuticals, microelectronics, and semiconductors, the MK-3 stack ensures reliable performance, high system recovery rates, and stable operation under varying conditions. Its robust construction supports long service life and minimal maintenance, making it a critical component in industrial water purification systems
| Attribute | Value |
|---|---|
| Maximum water production (m³/hr) | 4.5 |
| Minimum water production (m³/hr) | 1.6 |
| Recovery | Up to 96% |
| Shipping Weight | 100 kg (220 lbs) |
| Hardness (ppm as CaCO₃) | <1.0 |
| Sodium | ≤ 3 ppb |
| Boron | As low as 0.08 ppb |
| pH Range | 4 to 11 |
| Color | ≤ 5 APHA |
| Resistivity | ≥ 16 MOhm-cm |
| Application | Industrial High Purity Water Preparation |
Industrial-grade continuous electrodeionization technology utilizing DC electric fields to drive ion migration, combining ion-exchange resins and selective membranes for continuous impurity removal.
| Parameter | Value |
|---|---|
| Nominal Flow | 3.4 m³/h (15 gpm) |
| Flow Rate Range | 1.7 - 4.5 m³/h (7.0 - 20 gpm) |
| Dimensions (W x H x D) | 30 cm x 61 cm x 54 cm (12" x 24" x 22") |
| Product Water Quality | Resistivity ≥ 16 MOhm-cm, Sodium ≤ 3 ppb, Silica ≤ 5 ppb, Boron ≤ 0.08 ppb |
| Removal Efficiencies | Sodium ≥ 99.9%, Silica up to 99%, Boron up to 96% |
| Operating Parameters | Voltage 0-300 VDC, Amperage 0-5.2 ADC, Inlet Pressure ≤ 6.9 bar |
For more models and information, visit: https://www.fgwater.com/Veolia-Electrodeionization-EDI-Stack-Module/389.html
