| 원래 장소: | 중국 |
| 브랜드 이름: | IONPURE |
| 인증: | CE |

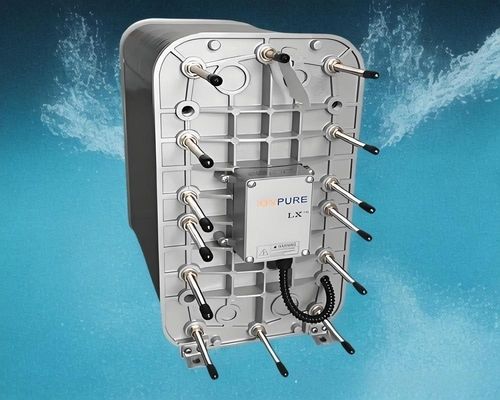

| 모델 번호: | IP-LXM24Z-5 |
| 문서: | fgwater-ionpure-lxz-ds.pdf |
| 최소 주문 수량: | 1 PC |
|---|---|
| 가격: | 협상 가능 |
| 포장 세부 사항: | 표준 수출 포장 |
| 배달 시간: | 5-8 근무일 |
| 지불 조건: | T/T, Western Union |
| 공급 능력: | 한 달에 60000 단위 |
| 24Z-5 최소 유량 M3/HR (GPM): | 1.36 (6.0) | 24Z-5 설계 유량 M3/HR (GPM): | 2.8-4.2 (12.5-18.8) |
|---|---|---|---|
| 24Z-5 배송 중량 kg (LBS) **: | 115 (254) | 24Z-5 작동 중량 kg (LBS): | 92 (103) |
| 모듈 복구: | 90~95% | 스택 장점: | 광범위한 흐름, 낮은 운영 비용, 안정적이고 안정적인 고순도 수를 제공합니다. |
| 스택 DC 전압: | 0~400 | DC Amperage를 쌓습니다: | 1.0~6.0 |
| 제품 사용: | 바이오의약품 산업 | ||
| 강조하다: | Ionpure CEDI LX-Z EDI module,EDI module for biopharmaceutical industry,IP-LXM24Z-5 EDI module with warranty |
||
| Attribute | Value |
|---|---|
| 24Z-5 Minimum Flow Rate m3/hr (gpm) | 1.36 (6.0) |
| 24Z-5 Design Flow Rate m3/hr (gpm) | 2.8-4.2 (12.5-18.8) |
| 24Z-5 Shipping Weight kg (lbs) | 115 (254) |
| 24Z-5 Operating Weight kg (lbs) | 92 (103) |
| Module Recovery | 90–95% |
| Stack Advantages | Wide Range Of Flow, Low Operating Costs, Providing Stable And Reliable High Purity Water |
| Stack DC Voltage | 0–400 |
| Stack DC Amperage | 1.0–6.0 |
| Product Application | Biopharmaceutical Industry |
The EDI membrane block removes ions through built-in ion exchange resin (Na+ represents cations and C1- represents anions). The system consists of:
CE mark certified, each module undergoes strict factory testing to meet industry standards. Manufactured under ISO 9001 and ISO 14000 quality and environmental management systems.
Install indoors away from direct sunlight. Ambient temperature must not exceed 113°F (45°C) for stable operation and extended service life.
| Parameter | Value |
|---|---|
| Recovery | 90-95% |
| DC Voltage | 0-400 |
| DC Amperage | 1.0-6.0 |
| Product Resistivity | Minimum Flow > 17 MW-cm*† Maximum Flow > 7 MW-cm*† |
| Silica (SiO2) Removal | 90-99%, depending on feed conditions |
| Parameter | Requirement |
|---|---|
| Conductivity (including CO2 and Silica) | < 40 μS/cm |
| Temperature | 5-45˚C (41-113˚F) |
| Inlet Pressure | 1.4-6.9 bar (20-100 psig) |
| Total Chlorine (as Cl2) | < 0.05 ppm |
| Total Hardness (as CaCO3) | < 1.0 ppm |
FG Water Technologies (www.fgwater.com) is part of Wuxi Fenigal Science and Technology Co. Ltd., specializing in water treatment equipment design, manufacturing, and international shipment. Our products include:
We serve industries worldwide including food & beverage, pharmaceutical, chemical, power, and wastewater treatment.
