| 원래 장소: | 중국 |
| 브랜드 이름: | IONPURE |
| 인증: | CE |
| 모델 번호: | IP-LXM30Z-5 |
| 문서: | fgwater-ionpure-lxz-ds.pdf |
| 최소 주문 수량: | 1 PC |
|---|---|
| 가격: | 협상 가능 |
| 포장 세부 사항: | 표준 수출 포장 |
| 배달 시간: | 5-8 근무일 |
| 지불 조건: | T/T, Western Union |
| 공급 능력: | 한 달에 60000 단위 |
| IP-LXM30Z-5 최소 유량 M3/HR (GPM): | 1.70 (7.5) | IP-LXM30Z-5 설계 유량 M3/HR (GPM): | 3.3-5.11(15.0-22.5) |
|---|---|---|---|
| IP-LXM30Z-5 운송 중량 kg (LBS) **: | 132 (291) | IP-LXM30Z-5 작동 중량 kg (LBS): | 110 (243) |
| IP-LXM30Z-5 복구: | 90~95% | 제품 장점: | 더 큰 안정성 |
| 스택 온도: | 5~45˚C(41~113˚F) | 스택 입구 압력: | 1.4~6.9bar(20~100psig) |
| 애플리케이션: | 순수한 물의 생산 |

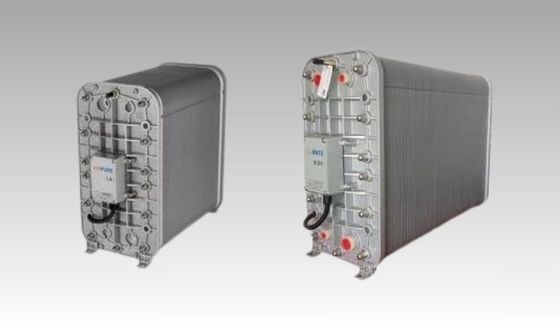

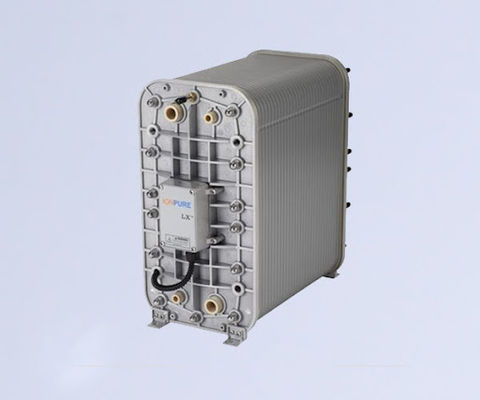

IONPURE LX-Z CEDI Module IP-LXM30Z-5 Zero Chemical Regeneration
Ionpure LX-Z — Industrial CEDI Module
The IONPURE® LX-Z IP-LXM30Z-5 is a premium industrial-grade Continuous Electrodeionization (CEDI) module engineered to deliver ultra-pure water without chemical regeneration. Designed for reliability in high-stakes environments, this membrane stack leverages Siemens’ patented CEDI technology to replace traditional mixed-bed ion exchange systems, eliminating hazardous chemical handling while ensuring consistent, high-quality output for critical industrial processes.
Chemical-Free Operation
Zero Chemical Regeneration: Utilizes electrical current to continuously regenerate ion-exchange resins, removing dissolved ions (e.g., salts, silica, heavy metals) without acids, alkalis, or neutralization systems. This reduces operational risks and waste disposal costs by >90% compared to conventional ion exchange.
Stable Output Quality: Produces water with resistivity >16 MΩ·cm (equivalent to or exceeding mixed-bed output), ensuring compliance with international purity standards for electronics, pharmaceuticals, and power generation.
Robust Industrial Design
Durability: Constructed with corrosion-resistant materials, including CPVC spacers, titanium-platinum electrodes, and stainless-steel cathodes, supporting continuous operation at pressures up to 7 bar (100 psi) and temperatures up to 45°C.
Leak-Proof Integrity: Dual O-ring seals and a rigid structural frame prevent leaks during high-pressure operation, validated by factory hydrostatic testing at 7 bar.
Efficiency & Scalability
Optimized Energy Use: Adaptive DC power supply (0–400V, 0–6A) dynamically adjusts to feedwater conductivity and flow rates, minimizing energy consumption.
Modular Deployment: Designed for seamless integration into systems requiring 3.3–5.1 m³/h (1,450–2,250 GPH) of high-purity water. Compatible with centralized skids for large-scale plants.
CE mark certification, each module is strictly tested before leaving the factory to meet the high standards of the industry and is manufactured under the conditions of complying with ISO 9001 and ISO 14000 quality and environmental management system standards.
About the operating environment of the IONPURE LX-Z module:
The module should be installed indoors, away from direct sunlight, and ensure that the ambient temperature does not exceed 113°F (45°C) to ensure its stable and efficient operation. This can effectively extend the service life of the module while ensuring the stability and reliability of the water quality.
* Actual performance can be accurately estimated using the IP-Pro prediction tool provided by Ionpure.
*Performance data is based on testing at the maximum inlet water conductivity equivalent value (40 μS/cm), ensuring excellent deionization results in various application scenarios.

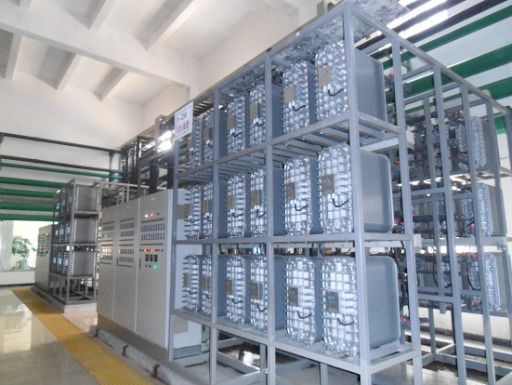

E-Cell EDI Technology Performance Examples
E-Cell EDI technology has been successfully applied in various industries such as power, petroleum, chemical, steel, pharmaceutical, and electronics.
For application cases, please click:https://www.fgwater.com/Industries/
